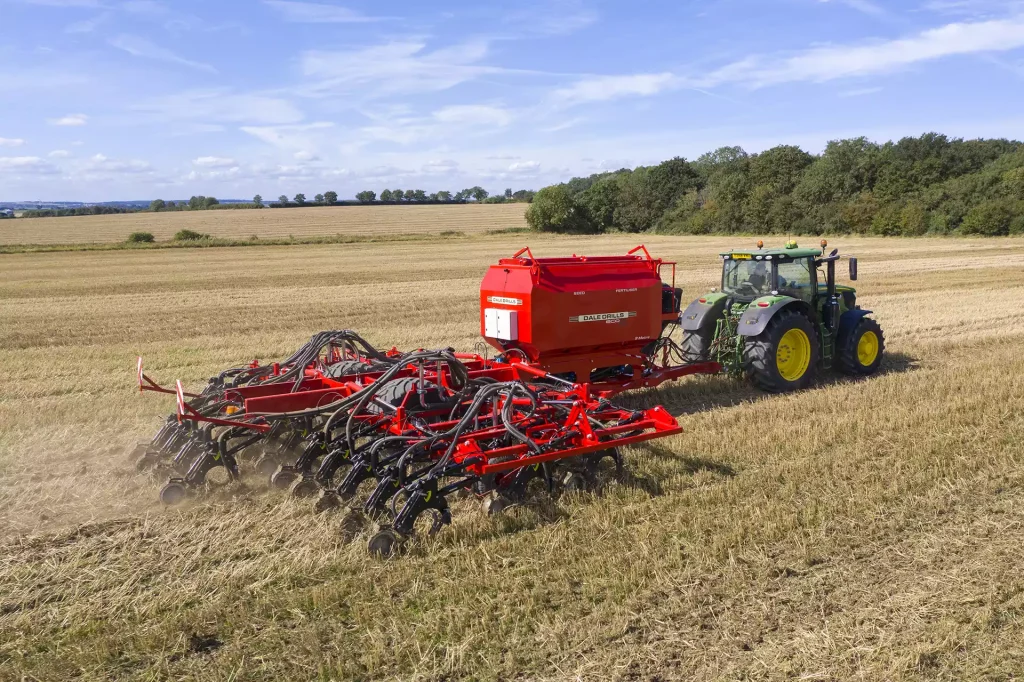

Engineered specifically with Controlled Traffic Farming systems in mind the Eco XL can provide unbeatable output with the same unrivalled accuracy and efficiency common across the entire Dale Drills product line. Featuring the same 12.5mm tine, adjustable row spacing and parallel linkage mounted drilling assemblies as the S, M and L model Eco Drills, the Eco XL can also boast even greater tool bar clearance to further improve its capabilities in heavy trash situations. Available in 8 – 13.5 metre working widths the Eco XL is a drill aimed at the large scale farmer and contractor for whom output is key!
Crop establishment made
economical innovative greener future-proofed more efficient for your business.
Eco XL Features
- Unrivalled output – up to 10 hectares per hour.
- Further improved trash flow – 1,550 mm between front and rear tines on each assembly.
- Low draught – 25 – 30 horse power requirement.
- Amazing manoeuvrability – optional steering rear axle.
- Versatile – can be used as a direct or conventional seed drill.
- Isobus Compatible – RDS Isocan contol system is fully Isobus ready.
- Accurate – parallel linkage ensures consistent depth control across the machine.
- Adjustable – row spacing can be set at 5, 10 or 20″
- CTF – 8 – 13.5m working suit controlled traffic farming systems.

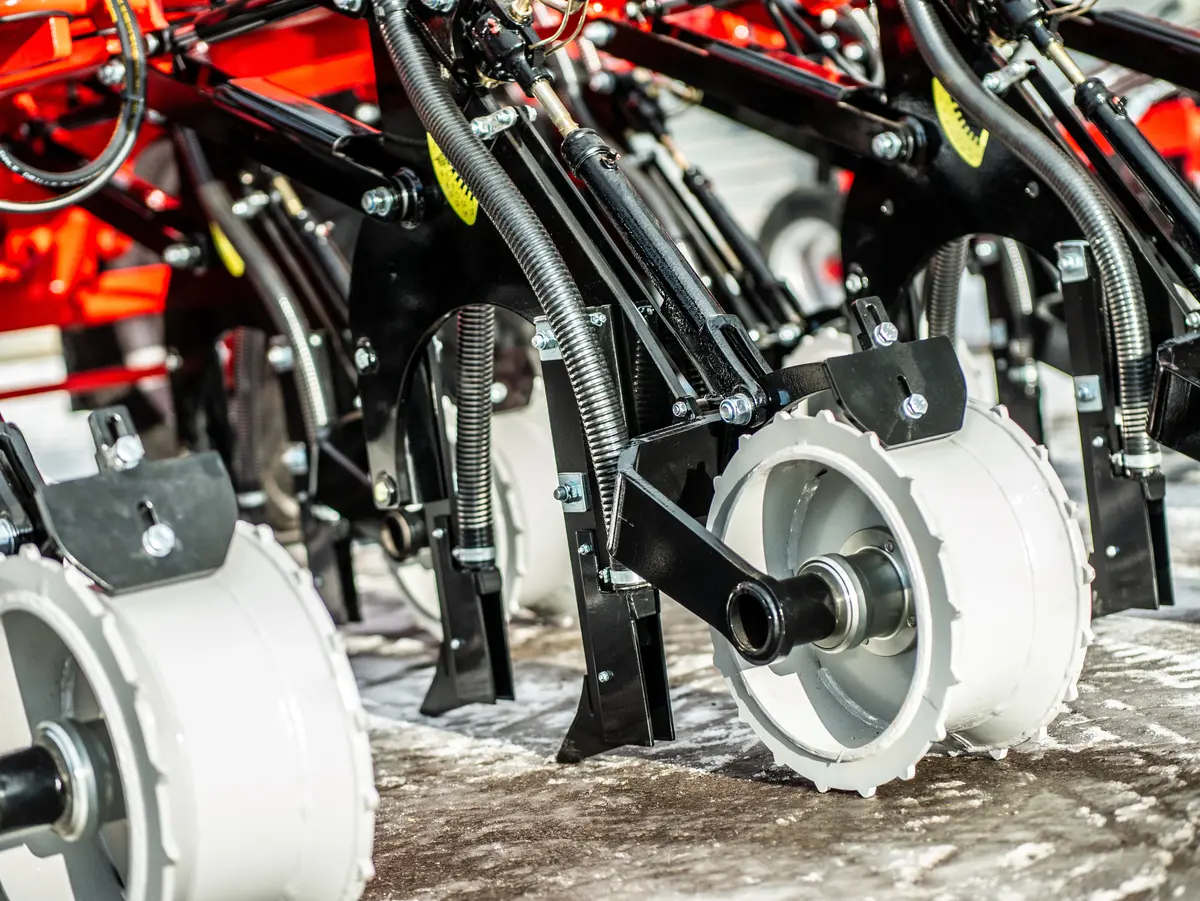

Self-Cleaning Press Wheel
With fabricated teeth for complete consolidation, improved traction, and consistent seed depth in all conditions.
Parallel linkages provide unbeatable contour following and accurate depth control.
Depth Control Handles
Each assembly features its own individual depth control handle, meaning consistent depth control across the machine.
Split Steel Construction Hopper
Split steel construction hopper that can be made with seed and fertiliser capacity.
Low Disturbance Points
The 12mm wide, Tungsten Carbide tipped tines, are long lasting, low cost and keep soil movement to a minimum whilst ensuring good seed soil contact
The 710 wide land wheels can be run at low ground pressures, preventing soil compaction
Eco XL Specification
|Row Spacing||Adjustable from 12.5cm – 25cm (5″ – 10″)|
|Hopper Capacity||4.5 tonnes (optional 6t)|
|Power Requirement (hp)||200 – 240||225 – 270||250 – 300||300 – 360||330 – 400|
|Seed and Fertiliser||Optional|
Trusted By Many
What Our Customers Say
“I see the biggest challenges to any arable business as profitability, black-grass control and soil health. Our Dale Drills' drill helps to address all three.”Matt LawmanS & M M Hall Farm
“Our Eco L is very low disturbance and relatively speaking doesn't weigh much at all. We've seen an 80% improvement in black grass, that's all down to later drilling.”Adam CarrJ & V Casey & Son LTD
“Whatever we bought needed to provide us a bigger window so we had the confidence to leave drilling as late as possible, helping us control ryegrass. A drill from Dale Drills ticked all the boxes.”Dan WormellP R Wormell Farms
“It has been a challenge to get a no-till drill built for us to slot into our system. British manufacturer Dale Drills has stepped up to the mark with a 13.5m ECO XL grain/fert no-till drill.”Ben SmithBen Smith & Son
You're In Safe Hands With Our Dedicated Aftersales Team
We understand how important it is to keep your drill running during the drilling period, therefore we strive to offer customers fast and effective solutions. Phone support and advice from our specialists, who have practical knowledge of the drills, is available whilst an ‘on the road’ mechanic is available if problems need more attention.
Every new drill we sell comes with one year warranty. Spare parts are normally available on next day delivery. Repairable parts can be collected from customers farms to be repaired.
Frequently Asked Questions
What are the running costs of Dale direct drills?
Although the drills are working for much of the time in very hard abrasive conditions, the tungsten tipped coulters give a long wearing life. Running costs on earth wearing parts are generally less than £1/ac.
What is the output of the direct drills?
A 6m drill at 10kph will drill 6 ha/hr in a straight line. With a 30% reduction for filling the hopper and turning on headlands, an output of over 4 ha/hr can be achieved.
What is the row spacing and what effect does it have on yield?
The Eco-Drill has a unique adjustable row spacing. The drill can be adjusted to work at 5″ (12.5cm) or 10″ (25cm). A quick adjuster allows this to be done in a relatively short amount of time. The Eco-Drill is the only drill on the market to be able to direct drill at 5″ row spacing.
The MTD typically drills at 5″ row spacing although we are normally able to adjust this to suit users requirements.
The Zero Till drills a band of seed 77mm (3″) wide, which is firmed down by the press wheel. There is a gap of 173mm (6″) between bands. Wider row spacing than current ‘close spaced’ drills is essential to allow trash to pass through the drill. In trials, yields have been the same until row spacing exceeds 355mm (14″).
Why is the drill so easy to pull?
As Dale Drills are only cultivating and rolling the part of the ground where the seed is planted, with a 12mm wide tungsten carbide tip, and leaving the rest of the ground untouched, they only require 20hp/metre width to pull them.
Are slugs a problem with reduced cultivations?
Yes, the less cultivation of the soil, the fewer slugs are squashed. The trash on the surface also harbours slugs. Slug problems can be reduced by baling and removing straw, harrowing stubble to evenly distribute remaining straw and trash, and rolling after drilling. Slug pellets will probably need to be applied, especially at the crop emergence stage.
How do you deal with compaction when direct drilling?
If you have a compaction problem, then remove that problem before drilling. Dale direct drills work well on level lifted ground, especially if it is rolled down before drilling.
A Controlled Traffic Farming system can be used to reduce the amount of compaction and therefore the need to cultivate. See our Controlled Traffic page for more information.
What advice can you give on preparation of land for direct drilling?
Direct drilling has the potential to save money on establishment costs, save moisture (we might need it one day!) and improve soil structure, by keeping the organic matter on the surface and increasing the population of earthworms. It is therefore well worth taking the trouble to make sure it works well.
We have put together these guidelines:
- Fields that don’t have any compaction problems are in the correct state to direct drill. If the land does have compaction then level lift and roll prior to drilling.
- Choose fields that don’t have severe grass weed problems. Grass weed seeds are better ploughed down and then the blackgrass can be sprayed out in the years before direct drilling.
- Use a chaff spreader on the combine.
- Combine the field using wide headlands, to prevent thick deposits of straw when turning.
- Cut cereal stubble 150mm (6”) high or less, and if not baling, finely chop the straw and spread it as well as possible. Longer stubble tends to cause blockages in the drill and also shades the growing crop.
If the chopped straw has not been evenly spread then straight tooth harrow or use a straw rake on the stubble at an angle to the direction of combining, which spreads the straw evenly across the field, helps to break it up further, and may provide a very shallow surface tilth. It should also squash a proportion of the slug population, if present.
Have the direct drilling done as early as reasonably possible. Give the plants time to establish while the soil is warm so that they can grow through any straw mulch and away from slug pressure.
Increase the seed rates by 5-10%. We are after all doing much less to create an ideal seedbed, so it is understandable that slightly less seedlings will survive.
Put slug bait points down prior to drilling. If there is a slug problem, spread slug pellets at the same time as drilling, or mix pellets with the seed. I would only advise mixing pellets with the seed if the land is cloddy, and the drill has not completely firmed soil around the seed.
Roll after drilling, to put down any stones and firm the surface to help against slugs.
Check for slug activity approximately 1 week after drilling when the seedlings are just emerging. If required, apply half rate minislug pellets. The plants are at their most vulnerable at the seedling stage.
Spray off with Roundup pre drilling if you have weeds and volunteers emerged.
Alternatively use Roundup after drilling if you intend using a
pre-emerge spray, as many will mix satisfactorily.
Use this year’s tramlines for next year’s crop. They will still be visible, and provided they are not deeply rutted will be ideal for carrying the sprayer, as they tend to remain firm right through the autumn.
You should see far less weeds emerging in direct drilled crops, especially if you have chopped and spread the straw prior to drilling.
If you wish to use a soil acting herbicide, don’t be too concerned about straw residue on the surface. Most of the chemical will wash through the straw to the soil, and if the straw is very thick, the weeds cannot grow through it anyway.
You should expect a small yield increase from direct drilling, because of moisture conservation, better soil structure and a lower weed pressure, and on all but the very lightest soils you should save over £30/ac (110 euro/ha) on establishment costs. It is therefore well worth making sure direct drilling has every chance of succeeding.
What are the ideal conditions for 'Zero Till' or 'Direct' drilling?
Conditions for direct drilling need to be as follows:
- Soil needs to be dry enough to crumble and form some tilth when tines pass through it.
- Soil structure needs to be good.
- Direct drilled crops are generally slower to grow; so direct drilling should be done early to give the crop more time.
- Fertilizer applied at drilling will significantly improve crop establishment by promoting more rapid growth, and better root development.
Will the Dale direct drills work on conventional seedbeds?
The drill works on min-till or conventional seedbeds. Rolling the seedbed to make it firm before drilling is advisable to enable the drill to perform well. Adjustable pressure to the assembly rams on our drills allow for an appropriate amount of pressure to be set for the conditions.
